Centrifugal design handles soft solids up to 35mm OD in suspension — the highest solids capacity in the VA range — with reduced risk of blockage
Double Mechanical Shaft Seal
Oil bath sealed with silicon carbide/ceramic seal on pump side and carbon/ceramic seal on motor end for superior motor protection and long service life
Sand Slinger Lip Seal
Additional lip seal provides extra protection against ingress of abrasive particles for longer service life
304 Stainless Steel Construction
Motor shell, shaft, strainer, handle and fasteners all in 304 stainless steel with high-quality paint finish for corrosion resistance and lasting appearance
Automatic Resetting Thermal Overload
Built-in overload protection automatically resets after tripping — guards against damage from overloading
10m HO7RNF Oil Resistant Lead
Heavy-duty 10-metre oil-resistant power lead rated for dirty water environments, supplied with 3-pin plug for easy connection
Fully Submersible
Maximum submergence depth of 12m for versatile installation in deep sumps and pits
Cast Iron Pump Casing
Heavy-duty cast iron casing provides robust protection and durability in demanding commercial applications
High Flow Performance
Highest capacity in the VA range — up to 240 lpm at heads to 7.5m
Model

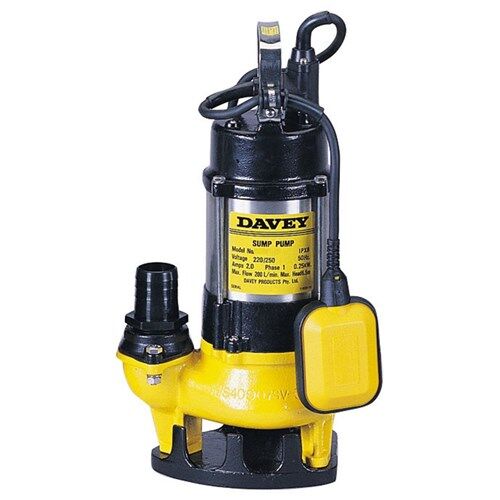

D40VA
Maximum Capacity
240 lpm
Maximum Head
7.5m
Maximum Submergence
12m
Maximum Soft Solids
35mm O.D.
Output Power
400W
Supply Voltage
220–240V / Single Phase / 50Hz
Outlet Size
2" BSP Female
Suitable Fluids
Clean or grey water, neutral pH, up to 10% small soft solids or 1% fine solids
