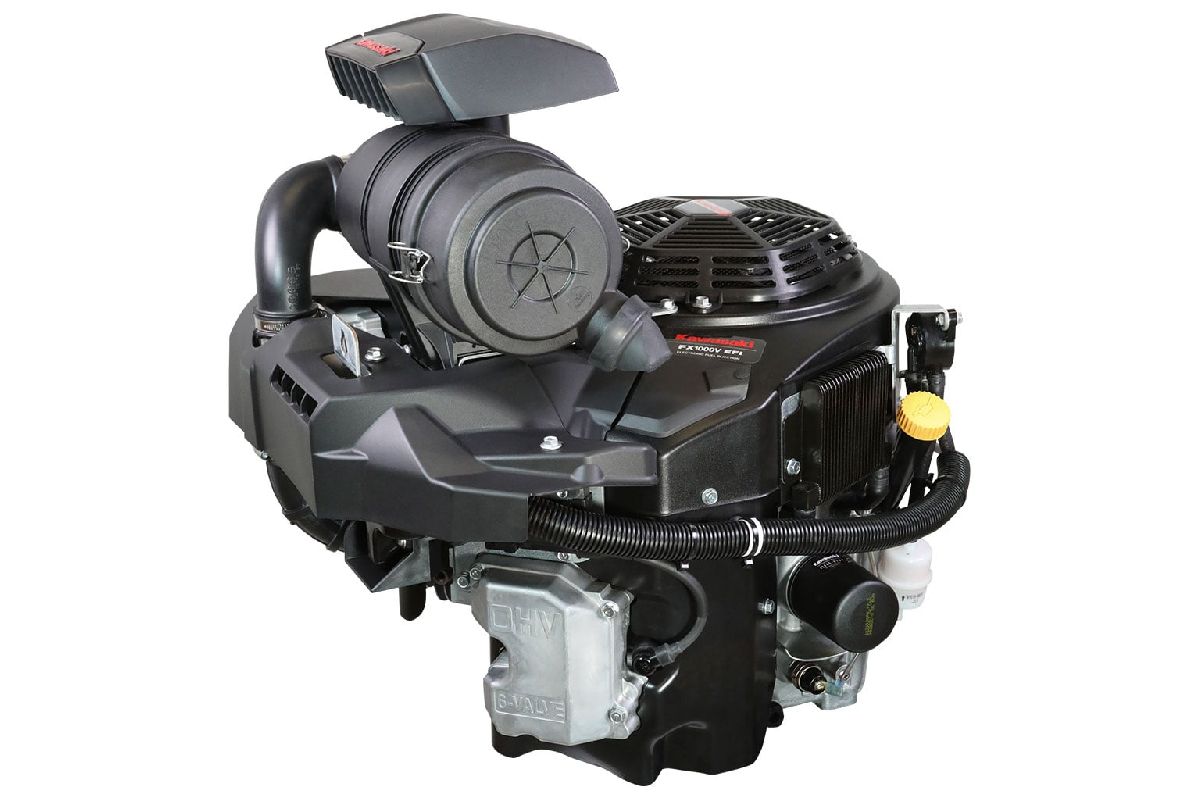

Kawasaki Fxt00v-aw00s Efi Vertical Shaft Engine ** Replaces Oem Spec Only **Kawasaki Fxt00v-aw00s Efi Vertical Shaft Engine ** Replaces Oem Spec Only **
Brand: KAWASAKI
SKU: ENG8428
$10,890.00 (Each)
Availability: Available
| Description: | Kawasaki FX1000V-S02-S EFI , 38.5 hp (28.7 kW) Vertical Shaft Engine With A 1 |
|---|---|
| 1/8” x 108.8 mm Crankshaft - Replaces OEM Spec Only | |
| Editorial: | Major power and commercial-grade strength are on tap from the Kawasaki FX Series |
| engines. When you’re looking for power for your mower or heavy duty industrial | |
| and construction equipment, you’ll find it here. All FX engines are Critical | |
| Power SAE-Certified, compact, 90-degree V-twin engines. Every one features | |
| hemispherical combustion chambers and overhead V-valve technology that helps ensure | |
| low emissions, high power, and smooth operation. Integrated electronic throttle | |
| control helps you power through the toughest mowing conditions. | |
| Kawasaki EFI fuel management continually adjusts power to load, keeping blade tip | |
| speed constant and ground speed steady. With optimum cutting speed through tough | |
| conditions, you’ll get more done in less time – and do it with maximum fuel | |
| economy. FX1000V-EFI 38.5 hp - The most powerful EFI engine yet for higher | |
| productivity and business-building potential. | |
| Features: | 90° V-twin. |
| Integrated electronic throttle control unit. | |
| Pressurized lubrication system. | |
| Electronic ignition with variable spark timing. | |
| Sequential multi-port fuel injection. | |
| Compact electronic control unit. | |
| Proven open loop design. | |
| Electronic altitude compensation. | |
| High pressure fuel injection technology with electronic fuel pump. | |
| Cast-iron cylinder liners. | |
| Industry-exclusive magnetic clean-out port covers, makes for easy maintenance | |
| Uniquely styled rain cap | |
| Hexagon-shaped screen cover | |
| Highest SAE certified horsepower in the industry | |
| Type: | Forced air cooled, 90 degree V-twin, electronic fuel injection engine. |
| Engine (cc): | 999 cc |
| Horsepower (@3,600 rpm): | 38.5 hp (28.7 kW) at 3,600 rpm (Please Note: Horsepower rating as tested to SAE |
| J1995 Standards.) | |
| Cylinder: | Two, 90° V-twin. |
| Cylinder Liner: | Cast-iron cylinder liners. |
| Bore x Stroke: | 3.51 x 3.15 in. (89.15 x 80 mm). |
| Displacement: | 999 cc (61.0 cu. in.). |
| Compression Ratio: | 8.4:1 |
| Cooling: | Forced air cooled. Fly-wheel fan. |
| Net Power: | Maximum Power 38.5 hp (28.7 kW) at 3,600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.) |
| Net Torque: | Maximum Torque 57.8 ft-lbs (78.4 N·m) at 3,200 rpm. |
| Decompressor: | Automatic compression release. |
| Ignition: | Electronic spark ignition. |
| Crankshaft Diameter: | 1 1/8" x 108.8 mm (28.5 X 108.8 mm) |
| Air Filter: | Multi-Stage canister air filter |
| Charging System: | 12-volt. |
| Starter: | 12-volt. |
| Exhaust/Muffler: | No. |
| Fuel: | Unleaded fuel - maximum of 10% ethanol in fuel. |
| Fuel Filter: | Yes, replaceable, automotive-type. |
| Governor: | Mechanical. |
| Oil Filter: | Yes, spin-on engine oil filter. |
| Oil Capacity: | Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres). |
| Dry Weight: (lb) | 153.7 lbs. |
| Dry Weight: (kg) | 69.7 kg. |
| Warranty: | KAWASAKI COMMERCIAL ENGINE WARRANTY POLICY FOR AUSTRALIA |
| GA Power Equipment Spares warrants to the initial purchaser of each new Kawasaki | |
| four-cycle engine that it will repair or replace, free of charge, any engine parts | |
| found to be defective, under normal use and proper maintenance, for a period of | |
| thirty-six (36) months, subject to the following conditions, exclusions, | |
| obligations and limitations. | |
| If you have questions about warranty coverage, please contact the local Kawasaki | |
| dealer. | |
| 1. COVERAGE. | |
| a. Any factory-installed engine part found to be defective by Kawasaki within the | |
| thirty-six (36) month warranty term shall be repaired or replaced without charge | |
| for parts or labour at any authorized Kawasaki engine dealer located in Australia | |
| b. A Kawasaki part or accessory sold and installed by an authorised Kawasaki Engine | |
| Dealer, which is found defective in material and/or workmanship, within the three | |
| (3) month warranty term, shall be repaired or replaced (at the option of Kawasaki) | |
| without charge for the part or accessory, at any authorised Kawasaki Engine Dealer | |
| located in Australia. | |
| 2. OWNER’S OBLIGATIONS. | |
| The following obligations must be fulfilled by owner to maintain the validity of | |
| the Kawasaki warranty for Australia: | |
| c. Owner must deliver the four-cycle engine to an authorized Kawasaki engine dealer | |
| for inspection, maintenance services and adjustments according to the Periodic | |
| Maintenance Chart for Australia (Right page). The inspection, maintenance services | |
| and adjustments are to be performed at owner’s expense. | |
| d. Owner must present proof of initial retail purchase date to an authorized | |
| Kawasaki engine dealer at the time warranty repairs are performed on the four-cycle | |
| engine. | |
| 3. LIMITATIONS. | |
| This warranty shall not apply to or include any of the following: | |
| e. Repair or replacement required as a result of accident, misuse or neglect, lack | |
| of reasonable and proper maintenance, repairs improperly performed or | |
| replacements improperly installed, use of replacement parts or accessories not | |
| conforming to Kawasaki specifications which adversely affect performance and/or | |
| durability, alterations or modifications not recommended or approved in writing by | |
| Kawasaki, and/or wear and deterioration occasioned by the use of the four-cycle | |
| engine, the use of stale or incorrect fuel | |
| f. Routine maintenance services, adjustments, cleaning and/or expendables such as | |
| spark plugs, lubricants, oil filters, air filters, and fuel filters. | |
| 4. LIMITED LIABILITY. | |
| g. The liability of Kawasaki under the thirty-six (36) month warranty is limited | |
| solely to the remedying of defects in factory-installed engine parts by an | |
| authorized Kawasaki engine dealer at its place of business during customary | |
| business hours. This warranty does not cover inconvenience or loss of use of the | |
| four-cycle engine or transportation of the four-cycle engine to and from the | |
| Kawasaki dealer. KAWASAKI SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE, LOSS OR | |
| DAMAGE, WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY ARISING IN | |
| CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE KAWASAKI FOUR CYCLE | |
| ENGINE FOR ANY PURPOSE. | |
| h. NO EXPRESS WARRANTY IS GIVEN BY KAWASAKI WITH RESPECT TO THE KAWASAKI FOUR-CYCLE | |
| ENGINE EXCEPT AS SPECIFICALLY SET FORTH HEREIN. | |
| ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS | |
| FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED | |
| TO THE THIRTY-SIX (36) MONTH WARRANTY TERM SET FORTH HEREIN. THE FOREGOING | |
| STATEMENTS OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF | |
| ALL OTHER REMEDIES. | |
| i. No distributor, dealer or other four-cycle engine reseller is authorized to | |
| modify this Kawasaki Limited Four-Cycle Warranty. | |
| AUSTRALIAN CONSUMER LAW (REG.90) | |
| Our goods come with guarantees that cannot be excluded under the Australian | |
| Consumer Law. You are entitled to a replacement or refund for a major failure and | |
| for compensation for any other reasonably foreseeable loss of damage. You are also | |
| entitled to have the goods repaired or replaced if the goods fail to be of | |
| acceptable quality and the failure does not amount to a major failure. | |
| The text above applies notwithstanding anything else expressed or implied to the | |
| contrary in this Warranty document | |
| Standard Pack Quantity: | 1 |
| Please Note: | Specifications subject to change without notice. |
| International Standard: | *PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.* |
| Brand: | Kawasaki, |
| Product Line: | Engine, Four Stroke Engine, V-Twin Engine, |
