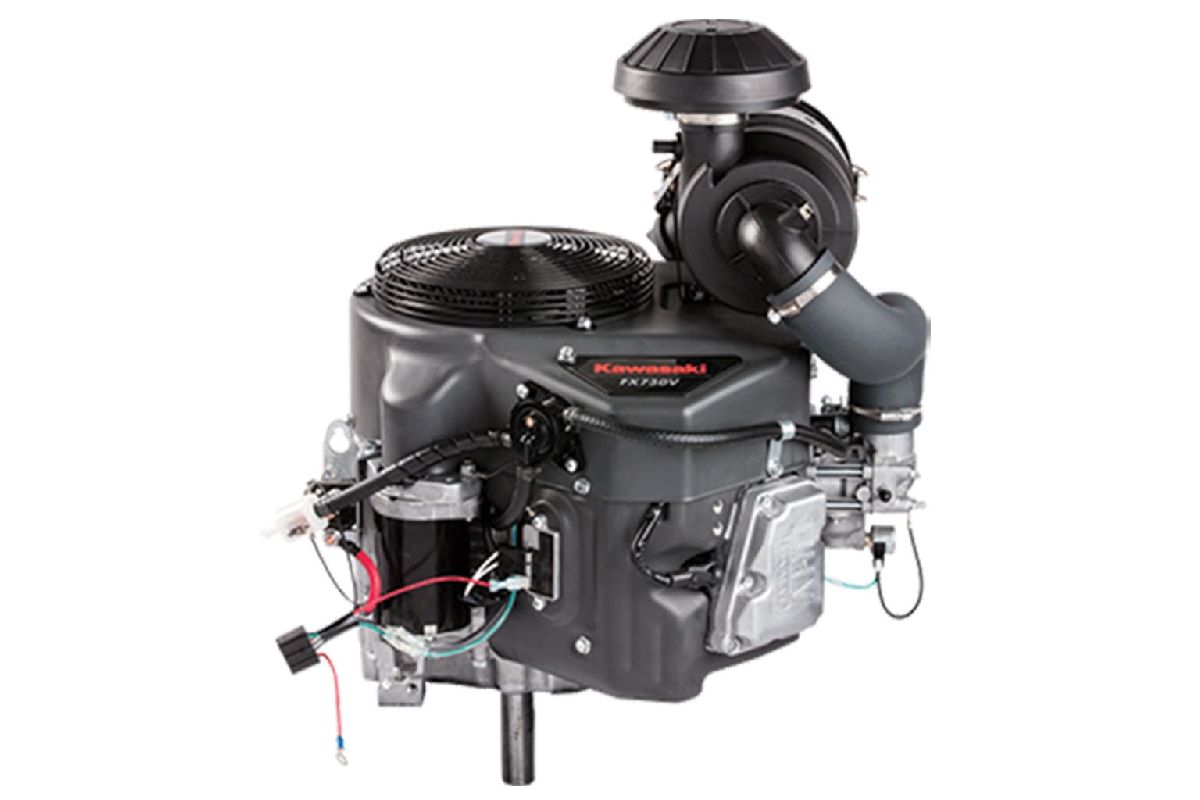

Kawasaki Fx730v-gs09-s 23.5hp Vertical Shaft Engine 1"1/8"

Brand: KAWASAKI

SKU: ENG8450

$6,319.50 (Each)

Availability: Available

Description:	Kawasaki FX730V-ES09-S, 23.5 hp (17.5 kw) Vertical Shaft Engine With A 1 1/8” x
	100 mm Crankshaft
Editorial:	Major power and commercial-grade strength are on tap from the Kawasaki FX Series
	engines. When you’re looking for power for your mower or heavy duty industrial
	and construction equipment, you’ll find it here. All FX engines are Critical
	Power SAE-Certified, compact, 90-degree V-twin engines. Every one features
	hemispherical combustion chambers and overhead V-valve technology that helps ensure
	low emissions, high power, and smooth operation.
Features:	Overhead V-valve.
	90° V-twin.
	High performance pressurized lubrication system.
	Electronic spark ignition.
	Electric Start.
	Automatic compression release.
	Rotating metal grass chopper screen.
	Twin barrel internally vented carburettor with fuel shut-off solenoid.
	Large capacity fuel pump.
	Multi-Stage canister heavy duty air filter for ZTR.
	Cast-iron cylinder liners.
	High efficiency oil cooler.
	Metal engine cover with integrated clean out ports.
	Heavy duty shift-type starter.
Type:	Air cooled, 90 degree V-twin, normally aspirated petrol engine.
Engine (cc):	726 cc
Horsepower (@3,600 rpm):	23.5 hp (17.5 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE
	J1995 Standards.)
Cylinder:	Two, 90° V-twin.
Cylinder Liner:	Cast-iron cylinder liners.
Bore x Stroke:	3.1 x 3.0 in. (78 x 76mm).
Displacement:	726 cc (44.3 cu. in.).
Compression Ratio:	8.2:1
Cooling:	Forced air cooled. Fly-wheel fan.
Net Power:	Maximum Power 23.5 hp (17.5 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Net Torque:	Maximum Torque 39.7 ft-lbs (53.8 N·m) at 2,400 rpm.
Decompressor:	Automatic compression release.
Ignition:	Electronic spark ignition.
Crankshaft Diameter:	1 1/8" x 100 mm (28.5 X 100 mm)
Air Filter:	Multi-Stage canister air filter
Charging System:	12-volt.
Starter:	12-volt.
Exhaust/Muffler:	No.
Fuel:	Unleaded fuel - maximum of 10% ethanol in fuel.
Fuel Filter:	Yes, replaceable, automotive-type.
Governor:	Mechanical.
Oil Filter:	Yes, spin-on engine oil filter.
Oil Capacity:	Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres).
Dry Weight: (lb)	105.8 lbs.
Dry Weight: (kg)	48 kg.
Warranty:	KAWASAKI COMMERCIAL ENGINE WARRANTY POLICY FOR AUSTRALIA
	GA Power Equipment Spares warrants to the initial purchaser of each new Kawasaki
	four-cycle engine that it will repair or replace, free of charge, any engine parts
	found to be defective, under normal use and proper maintenance, for a period of
	thirty-six (36) months, subject to the following conditions, exclusions,
	obligations and limitations.
	If you have questions about warranty coverage, please contact the local Kawasaki
	dealer.
	1. COVERAGE.
	a. Any factory-installed engine part found to be defective by Kawasaki within the
	thirty-six (36) month warranty term shall be repaired or replaced without charge
	for parts or labour at any authorized Kawasaki engine dealer located in Australia
	b. A Kawasaki part or accessory sold and installed by an authorised Kawasaki Engine
	Dealer, which is found defective in material and/or workmanship, within the three
	(3) month warranty term, shall be repaired or replaced (at the option of Kawasaki)
	without charge for the part or accessory, at any authorised Kawasaki Engine Dealer
	located in Australia.
	2. OWNER’S OBLIGATIONS.
	The following obligations must be fulfilled by owner to maintain the validity of
	the Kawasaki warranty for Australia:
	c. Owner must deliver the four-cycle engine to an authorized Kawasaki engine dealer
	for inspection, maintenance services and adjustments according to the Periodic
	Maintenance Chart for Australia (Right page). The inspection, maintenance services
	and adjustments are to be performed at owner’s expense.
	d. Owner must present proof of initial retail purchase date to an authorized
	Kawasaki engine dealer at the time warranty repairs are performed on the four-cycle
	engine.
	3. LIMITATIONS.
	This warranty shall not apply to or include any of the following:
	e. Repair or replacement required as a result of accident, misuse or neglect, lack
	of reasonable and proper maintenance, repairs improperly performed or
	replacements improperly installed, use of replacement parts or accessories not
	conforming to Kawasaki specifications which adversely affect performance and/or
	durability, alterations or modifications not recommended or approved in writing by
	Kawasaki, and/or wear and deterioration occasioned by the use of the four-cycle
	engine, the use of stale or incorrect fuel
	f. Routine maintenance services, adjustments, cleaning and/or expendables such as
	spark plugs, lubricants, oil filters, air filters, and fuel filters.
	4. LIMITED LIABILITY.
	g. The liability of Kawasaki under the thirty-six (36) month warranty is limited
	solely to the remedying of defects in factory-installed engine parts by an
	authorized Kawasaki engine dealer at its place of business during customary
	business hours. This warranty does not cover inconvenience or loss of use of the
	four-cycle engine or transportation of the four-cycle engine to and from the
	Kawasaki dealer. KAWASAKI SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE, LOSS OR
	DAMAGE, WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY ARISING IN
	CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE KAWASAKI FOUR CYCLE
	ENGINE FOR ANY PURPOSE.
	h. NO EXPRESS WARRANTY IS GIVEN BY KAWASAKI WITH RESPECT TO THE KAWASAKI FOUR-CYCLE
	ENGINE EXCEPT AS SPECIFICALLY SET FORTH HEREIN.
	ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS
	FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED
	TO THE THIRTY-SIX (36) MONTH WARRANTY TERM SET FORTH HEREIN. THE FOREGOING
	STATEMENTS OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF
	ALL OTHER REMEDIES.
	i. No distributor, dealer or other four-cycle engine reseller is authorized to
	modify this Kawasaki Limited Four-Cycle Warranty.
	AUSTRALIAN CONSUMER LAW (REG.90)
	Our goods come with guarantees that cannot be excluded under the Australian
	Consumer Law. You are entitled to a replacement or refund for a major failure and
	for compensation for any other reasonably foreseeable loss of damage. You are also
	entitled to have the goods repaired or replaced if the goods fail to be of
	acceptable quality and the failure does not amount to a major failure.
	The text above applies notwithstanding anything else expressed or implied to the
	contrary in this Warranty document
Standard Pack Quantity:	1
Please Note:	No fuel tank or muffler Included. Specifications subject to change without notice.
International Standard:	PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.
Brand:	Kawasaki,
Product Line:	Engine, Four Stroke Engine, V-Twin Engine,
