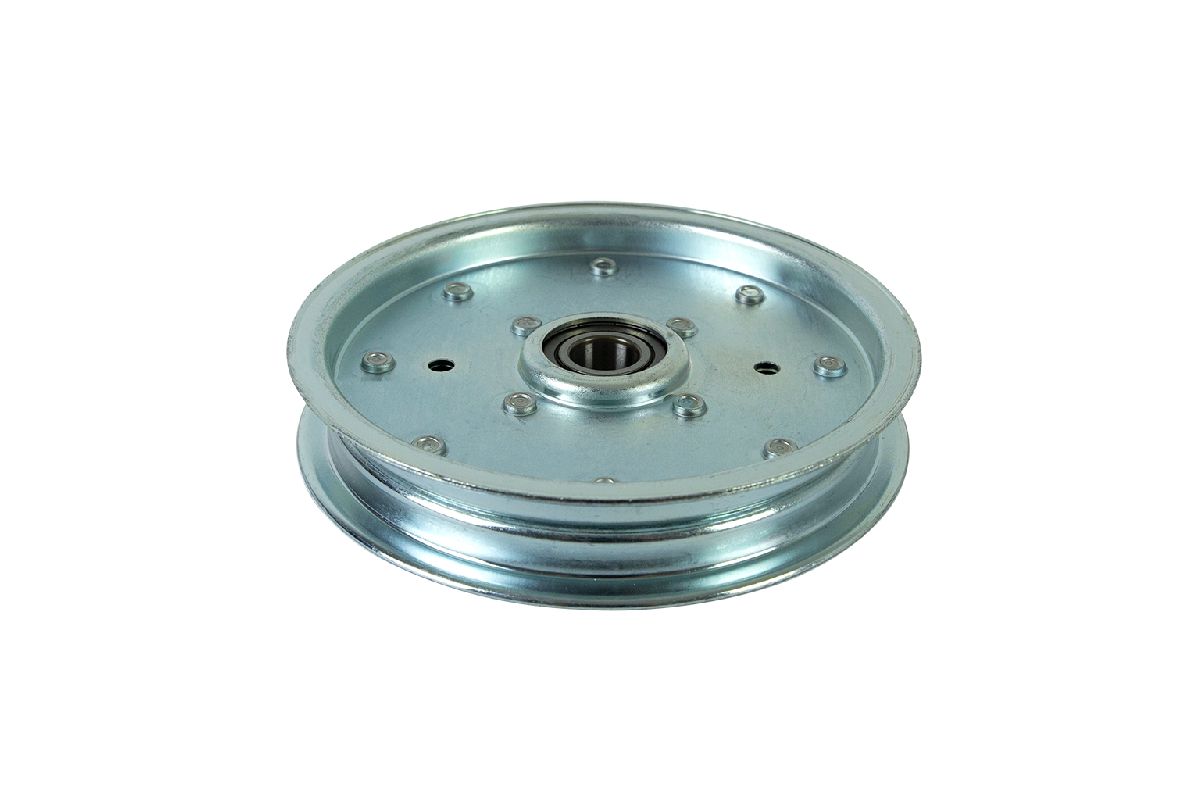

| Description: | Non-Genuine John Deere ZTrak Deck Flat Idler Pulley - Steel |
|---|
| Replaces OEM: | John Deere AUC10172, GY22355 |
|---|
| Centre Hole Type: | Round |
|---|
| Centre Hole Diameter: (inches) | 0.669" |
|---|
| Centre Hole Diameter: (mm) | 17 mm |
|---|
| Deck (cm) | 106.7 cm, 122 cm, 137.2 cm, 152.4 cm Cut. |
|---|
| Deck (inches) | 42", 48", 54", 60" Cut. |
|---|
| Deck (mm) | 1067 mm, 1220 mm, 1372 mm, 1524 mm Cut. |
|---|
| Outside Diameter: (inches) | 6 1/8" |
|---|
| Outside Diameter: (mm) | 155.57 mm |
|---|
| Pulley Dimension A: (inches) | 6 1/8" |
|---|
| Pulley Dimension A: (mm) | 155.57 mm |
|---|
| Pulley Dimension B: (inches) | 5 1/2" |
|---|
| Pulley Dimension B: (mm) | 139.7 mm |
|---|
| Pulley Dimension C: (inches) | 0.669" |
|---|
| Pulley Dimension C: (mm) | 17 mm |
|---|
| Pulley Dimension D: (inches) | 15/16" |
|---|
| Pulley Dimension D: (mm) | 23.81 mm |
|---|
| Pulley Height : (inches) | 15/16" |
|---|
| Pulley Height : (mm) | 23.81 mm |
|---|
| Fits: | 42" (1067 mm) cut John Deere Accel Deep Deck model 42A cutting decks as fitted to |
|---|
| selected Residential ZTrak series including models Z335E [2] (years 2016 to 2021), |
|---|
| Z335M [2] (years 2017 to 2021), Z345M [2] (year 2021), Z345R [2] (years 2017 to |
|---|
| 2021), 48" (1220 mm) cut John Deere Accel Deep Deck model 48A cutting decks as |
|---|
| fitted to selected Residential ZTrak series including models Z355E [3] (years 2017 |
|---|
| to 2021), Z355R [3] (years 2019 to 2021), Z365R [3] (year 2021), Z515E [3] (year |
|---|
| 2021), Z525E [3] (years 2016 to 2020), Z530M [3] (year 2021), Z535M [3] (years 2016 |
|---|
| to 2020) and 48" (1220 mm) cut John Deere Edge HC (High-Capacity) decks as fitted |
|---|
| to selected Residential ZTrak series including model Z540R [3] (2016 to 2020), 54" |
|---|
| (1372 mm) cut John Deere Accel Deep Deck model 54A cutting decks as fitted to |
|---|
| selected Residential ZTrak series including models Z375R [3] (years 2017 to 2021), |
|---|
| Z515E [3] (year 2021), Z525E [3] (years 2016 to 2020), Z530M [3] (year 2021), Z535M |
|---|
| [3] (years 2016 to 2020) and 54" (1372 mm) cut John Deere Edge (HC High Capacity) |
|---|
| decks as fitted to selected Residential ZTrak series including models Z535R [3] |
|---|
| (years 2016 to 2020), Z540R [3] (years 2016 to 2020),60" (1524 mm) cut John Deere |
|---|
| Accel Deep Deck model 60A cutting decks as fitted to selected Residential ZTrak |
|---|
| series including models Z515E [3] (year 2021), Z530M [3] (year 2021) and 62" (1575 |
|---|
| mm) cut John Deere Edge (62C) cutting decks as fitted to selected Residential ZTrak |
|---|
| series including model Z535M [3] (years 2017 to 2020) zero turn radius (ZTR) |
|---|
| ride-on models. |
|---|
| Product Line Notes: | The number in brackets after the model is listed, is the quantity of this flat |
|---|
| idler pulley required per unit. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Brand: | John Deere Non-Genuine, |
|---|
| Product Line: | Deck Flat Idler Pulley, Flat Idler Pulley, Idler Pulley - Flat, Steel Flat Idler |
|---|
| Pulley, |
|---|
