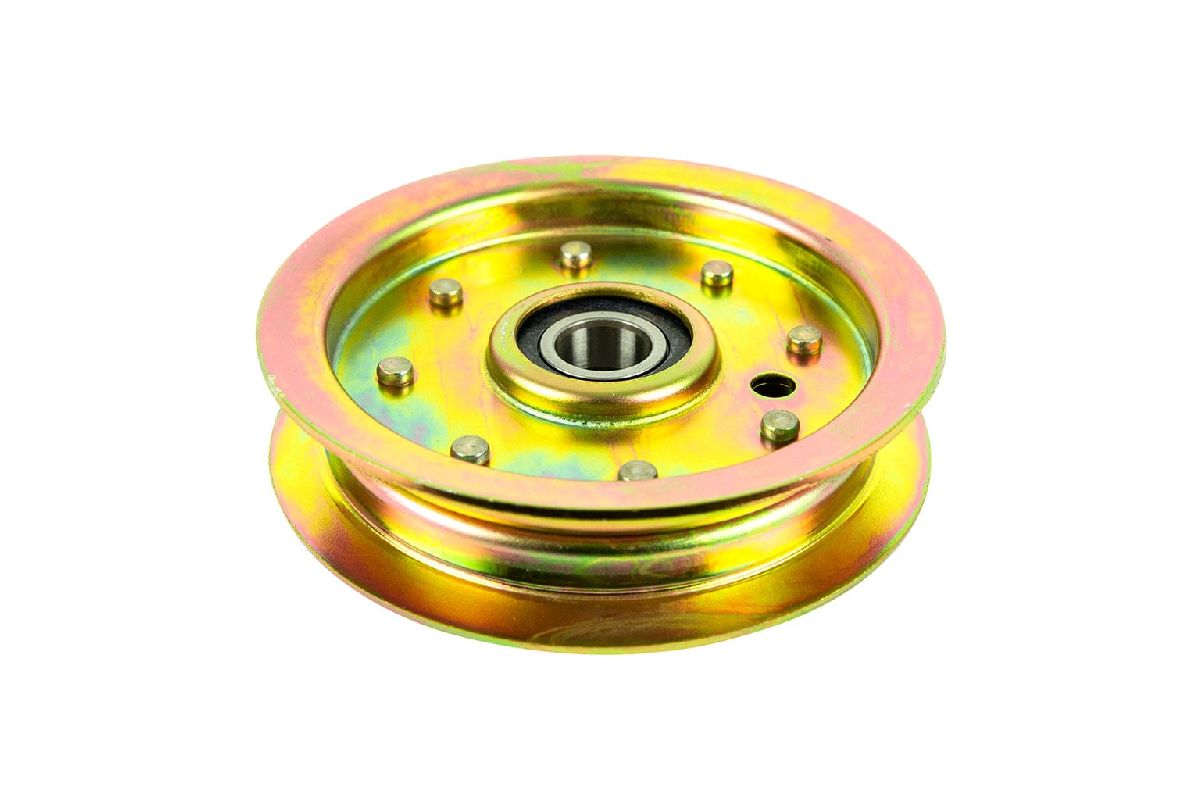

| Description: | Non-Genuine TORO Commercial Walk-Behind, TimeCutter, TITAN, Z Master 44", 48", 52", |
|---|
| 54", 60" Cut Deck & Transmission Flat Idler Pulley |
|---|
| Replaces OEM: | TORO 1-603843, 116-3626, 132-4718, E603843 |
|---|
| Deck (cm) | 111.8 cm, 122 cm, 132 cm, 137.2 cm & 152.4 cm |
|---|
| Deck (inches) | 44", 48", 52", 54" & 60" |
|---|
| Deck (mm) | 1118 mm, 1220 mm, 1320 mm, 1372 mm & 1524 mm |
|---|
| Height: (inches) | 3/4" |
|---|
| Height: (mm) | 19.05 mm |
|---|
| Inside Diameter: (inches) | 11/16" |
|---|
| Inside Diameter: (mm) | 17.46 mm |
|---|
| Outside Diameter: (inches) | 4 7/8" |
|---|
| Outside Diameter: (mm) | 123.82 mm |
|---|
| Pulley Diameter: (inches) | 4 7/8" |
|---|
| Pulley Diameter: (mm) | 123.82 mm |
|---|
| Pulley Dimension A: (inches) | 4 7/8" |
|---|
| Pulley Dimension A: (mm) | 123.82 mm |
|---|
| Pulley Dimension C: (inches) | 11/16" |
|---|
| Pulley Dimension C: (mm) | 17.46 mm |
|---|
| Fits: | 44" (1118 mm) Cut TORO TimeCutter 17-44ZX (model 74401 year 2005 - 1 required per |
|---|
| unit), TimeCutter 18-44ZX (model 74602 year 2004 - 1 required per unit), TimeCutter |
|---|
| ZX440 (model 74406 years 2005 to 2008 - 1 required per unit) as a transmission flat |
|---|
| idler pulley. |
|---|
| Fits: | 48" (1220 mm) Cut TORO Commercial Walk-Behind Mower (model 30678 years 2010 to 2014 |
|---|
| - 1 required per unit), TimeCutter HD MyRide MR4800 (model 75211 years 2018 to 2019 |
|---|
| - 3 required per unit), TimeCutter HD Series ZX4800 (model 75201 years 2018 to |
|---|
| 2019 - 3 required per unit), Titan HD1500 Series (model 74450 year 2018 - 1 |
|---|
| required per unit), Titan HD 2000 Series (model 74465 year 2019 - 1 required per |
|---|
| unit), Titan MX4880 (model 74871 year 2013 - 3 required per unit), Titan Z4800 |
|---|
| (models 74812 year 2007 and 74813 year 2008 - both 1 required per unit), Titan |
|---|
| ZX4800 (models 74861 years 2015 to 2016 and 74912 year 2010 - both 3 required per |
|---|
| unit), Titan ZX 4820 (model 74920 years 2011 to 2013 - 3 required per unit) as a |
|---|
| deck flat idler pulley. |
|---|
| Fits: | 48" (1220 mm) Cut TORO Z Master Z450 and Z453 (models 74417 years 2005 to 2008 and |
|---|
| 74417CP years 2007 to 2008 - 1 required per unit) as a transmission flat idler |
|---|
| pulley. |
|---|
| Fits: | 52" (1320 mm) Cut TORO Titan HD 2000 Series (models 74461 year 2018 and 74466 year |
|---|
| 2019 - both 1 required per unit), Titan Z5200 (models 74814 year 2007 and 74815 |
|---|
| year 2008 - both 1 required per unit) as a deck flat idler pulley. |
|---|
| Fits: | 52" (1320 mm) Cut TORO TimeCutter 19-52ZX (model 74802 year 2004 - 1 required per |
|---|
| unit), TimeCutter ZX525 (models 74407 year 2005 and 74806 years 2005 to 2007 - 1 |
|---|
| required per unit), Z Master Z450 and Z453 (models 74416 years 2007 to 2008 and |
|---|
| 74416CP years 2007 to 2008 - both 1 required per unit) as a transmission flat |
|---|
| idler pulley. |
|---|
| Fits: | 54" (1372 mm) Cut TORO TimeCutter HD Series MR 5400 (model 75212 years 2018 to 2019 |
|---|
| - 3 required per unit), Titan MX 5400 (model 74892 years 2015 to 2016 - 3 required |
|---|
| per unit), Titan MX5480 (model 74872 year 2013 - 3 required per unit), Titan ZX5400 |
|---|
| (model 74914 years 2009 to 2010 - 3 required per unit), Titan ZX 5420 (model 74924 |
|---|
| years 2011 to 2013 - 3 required per unit) as a deck flat idler pulley. |
|---|
| Fits: | 60" (1524 mm) Cut TORO Titan HD 2000 Series (model 74467 year 2019 - 1 required per |
|---|
| unit), Titan MX6080 (model 74873 years 2012 to 2013 - 3 required per unit), Titan |
|---|
| ZX6020 (model 74843 years 2011 to 2013 - 3 required per unit), Titan ZX6050 (model |
|---|
| 74824 years 2009 to 2010 - 3 required per unit) as a deck flat idler pulley. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Brand: | TORO Non-Genuine, |
|---|
| Product Line: | Deck Idler Pulley, Idler Pulley, Flat Idler Pulley, Pulley - Idler, Transmission |
|---|
| Flat Idler Pulley, |
|---|
Toro Timecutter, Titan, Wide Area Mower & Z Master Deck & Transmission Flat Idler Pulley
