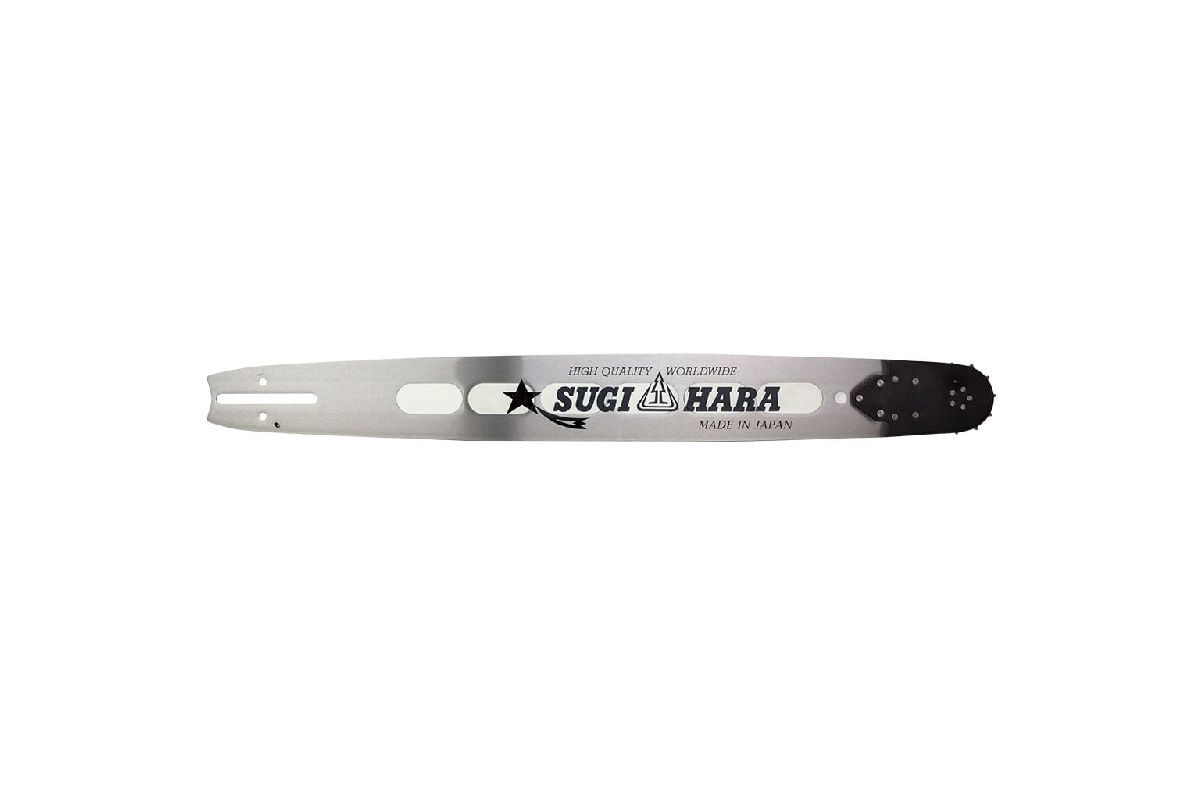

Prokut Platinum Sugi Hara Sprocket Nose Bar 24 #43 Cb Light Weight BarProkut Platinum Sugi Hara Sprocket Nose Bar 24 #43 Cb Light Weight Bar
Brand: FORESTRY-G
SKU: GAFCB2443RRP
$241.73 (Each)
Availability: Not Available
| Description: | PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 24" x 3/8" x .063" x 82 DL, CB |
|---|---|
| Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan | |
| Editorial: | The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are |
| manufactured In Japan from a single piece of steel. Manufactured the same way as | |
| the Sugihara Red Label Pro Solid bars but with sections removed and filled with a | |
| rigid, weight reducing resin. One of the best guide bars in the world today | |
| Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular | |
| version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars | |
| are sought after for their high performance and light-weight. They are easily | |
| recognised by the white resin sections and black label. The most striking looking | |
| bar on the market. | |
| Replaces OEM: | Oregon 243RNDD009 |
| Sugihara - Diatop VT3U-3Q61-A | |
| Features: | PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily |
| recognised by the white resin sections and black label. | |
| Manufactured the same way as the Sugihara Red Label Pro Solid bars but with | |
| sections removed and filled with a rigid, weight reducing white resin. | |
| This guide bar weighs just 1305g | |
| Professional premium quality, reduced weight replaceable sprocket nose guide bar. | |
| High durability sprocket nose. | |
| Polished lacquered finish. | |
| Nose fastens with three rivets, and is securely held by wide and strong overlapping | |
| ears. | |
| The long sprocket nose takes most of the abuse, and minimizes wear to the bars | |
| body. | |
| Super tough steel, heat treated up to 4 times on different parts of the guide bar, | |
| provides superior bar-body strength and tough rails with excellent resistance to | |
| wear and chipping. | |
| PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale. | |
| Made in Japan. | |
| All PROKUT guide bars are reversible for longer life. | |
| Length: (in): | 24" |
| Length: (cm): | 60 cm |
| Pitch: | 3/8" |
| Bar Type: | PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar |
| Chain / Cutter Type: | 43S / Semi-Chisel or 43F / Full-Chisel |
| Bar Mount Type: | CB |
| Gauge: | .063" |
| Drive Link Count: | 82 (*please refer to notes after each fitment application) |
| Teeth: | 11 Tooth sprocket nose |
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
| Fits: | *Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS, |
| PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910, | |
| PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws. | |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Fits: | *Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP |
| LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 | |
| XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, | |
| 465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP | |
| AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L | |
| 66, L 70 and L 77 model chainsaws. | |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Fits: | *Jonsered 670, 670 WEST COAST, 2083, 2083II model chainsaws. |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Note: Please check your saw carefully prior to ordering, some of the above saw | |
| models were also released fitted with a .404" pitch chain. | |
| Fits: | *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model |
| chainsaws. | |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Note: Please check your saw carefully prior to ordering, some of these saw models | |
| were also released fitted with a .404" pitch chain. | |
| Fits: | *Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Note: Please check your saw carefully prior to ordering, some of these saw models | |
| were also released fitted with a .404" pitch chain. | |
| Fits: | *Shindaiwa 680, 695, 757, 757C and 757W model chainsaws. |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Fits: | *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws. |
| Product Line Notes: | *Please note these models were fitted with 84 drive link chains from new. This |
| guide bar uses an 82 drive link chain and so the existing chain will require | |
| shortening to use this PROKUT Platinum Sugihara guide bar on these applications. | |
| Standard Pack Quantity: | 1 |
| Note: | *This is an 82 drive link guide bar not an 84 drive link guide bar. If your saw was |
| previously fitted with an 84 drive link guide bar you will need to shorten the | |
| chain. Replaces our 84 drive link guide bar part number OMK243RNDD009. | |
| Please Note: | Other PROKUT bar options to fit the above models Include: - For a PROKUT PLATINUM |
| SUGIHARA solid professional replaceable sprocket nose guide bar option (which is | |
| made In Japan) use our part number GAFCB2443RSP. | |
| For a standard PROKUT solid professional replaceable sprocket nose guide bar option | |
| use our part number GAFCB2443RS (Which uses an 84 Drive link chain. Use this guide | |
| bar with our semi-chisel chain loop part number GAF43S084DL or our full-chisel | |
| chain loop part number GAF43F084DL). For an .058" gauge version of this guide bar | |
| use our part number GAFCB2448RSP (Which also uses a 82 drive link chain.) | |
| Brand: | PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories, |
| Product Line: | Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar, |
| sprocket nose guide bar, |
