| Description: | Non-Genuine Cox, Craftsman, Husqvarna, Victa Blade And Bolt Sets - Small Workshop |
|---|
| Pack of 25 Sets |
|---|
| Replaces OEM: | Cox SMB198AHD |
|---|
| Length: (in): | 7 3/4" |
|---|
| Length: (mm): | 196.85 mm |
|---|
| Width: (inches) | 1.968" |
|---|
| Width: (mm) | 50 mm |
|---|
| Thickness: (inches) | 0.118" |
|---|
| Thickness: (mm) | 3 mm |
|---|
| Hole Size: (inches) | 1/2" |
|---|
| Hole Size: (mm) | 12.7 mm |
|---|
| Fits: | 32” (813 mm) cut Cox selected models including but not limited to Lawn Boss 9605G |
|---|
| and A10506G, Nova, Orion XL, Stockman and Supa Nova ride-on lawn mower models as a |
|---|
| high flute blade option. |
|---|
| Product Line Notes: | For a display packed high flute blade and bolt combo pack option order our part |
|---|
| number BRC5544 or for a display packed low flute blade and bolt combo pack option |
|---|
| order our part number BRC2089. |
|---|
| Fits: | 46” (1168 mm) cut *Craftsman selected two blade deck models including but not |
|---|
| limited to Yard Series YT3000 (model 28924, years 2009 to 2011) and Yard Series |
|---|
| YT4000 (models 28857 and 28928, years 2009 to 2011) ride-on lawn mower models when |
|---|
| converting from 5-point star centre hole bar blades to swing back blades, (please |
|---|
| refer to the product note below for a full components required list). |
|---|
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
|---|
| conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back |
|---|
| blade conversion carrier bars. |
|---|
| (Other options that you may already have in stock include using our BLS3817 x 2 qty |
|---|
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5788 x 2 qty flat, 5-point |
|---|
| star centre hole swing back blade conversion carrier bars. For a blade and bolt |
|---|
| combo pack option order our part number BRC5544 x 2 qty. For a standard bar blade |
|---|
| option use our BLR6877 x 2 qty, for a Copperhead Mulcher bar blade option use our |
|---|
| BLR8159 x 2 qty). ***Please Note this swing back blade set up will not fit the |
|---|
| 46” cut Craftsman PYT9000 (model 28888) which is a premium featured (Cub Cadet |
|---|
| based) Sears manufactured ride on.*** |
|---|
| Fits: | 46” (1168 mm) cut *Husqvarna two blade deck models 2007 onwards including but not |
|---|
| limited to YTH2546T and YTH2546TD ride-on lawn mower models when converting from |
|---|
| 5-point star centre hole bar blades to swing back blades, (please refer to the |
|---|
| product note below for a full components required list). |
|---|
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
|---|
| conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back |
|---|
| blade conversion carrier bars. |
|---|
| (Other options that you may already have in stock include using our BLS3817 x 2 qty |
|---|
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5788 x 2 qty flat, 5-point |
|---|
| star centre hole swing back blade conversion carrier bars. For a blade and bolt |
|---|
| combo pack option order our part number BRC5544 x 2 qty. For a standard bar blade |
|---|
| option use our BLR6877 x 2 qty, for a Copperhead Mulcher bar blade option use our |
|---|
| BLR8159 x 2 qty). |
|---|
| Fits: | 32” (813 mm) cut Victa Corvette ride-on lawn mower models. |
|---|
| Product Line Notes: | For a display packed high flute blade and bolt combo pack option order our part |
|---|
| number BRC5544 or for a display packed low flute blade and bolt combo pack option |
|---|
| order our part number BRC2089. |
|---|
| Australian Made: | Yes |
|---|
| Features: | Heavy duty 3 mm thick, stepped and high fluted blades, right hand cut, |
|---|
| Includes matching bolt sets, |
|---|
| Supplied in bulk for workshop use in a reusable plastic parts box, |
|---|
| Suits OEM production line machines, |
|---|
| Also suitable for use with nine GA swing back blade conversion carrier bars, |
|---|

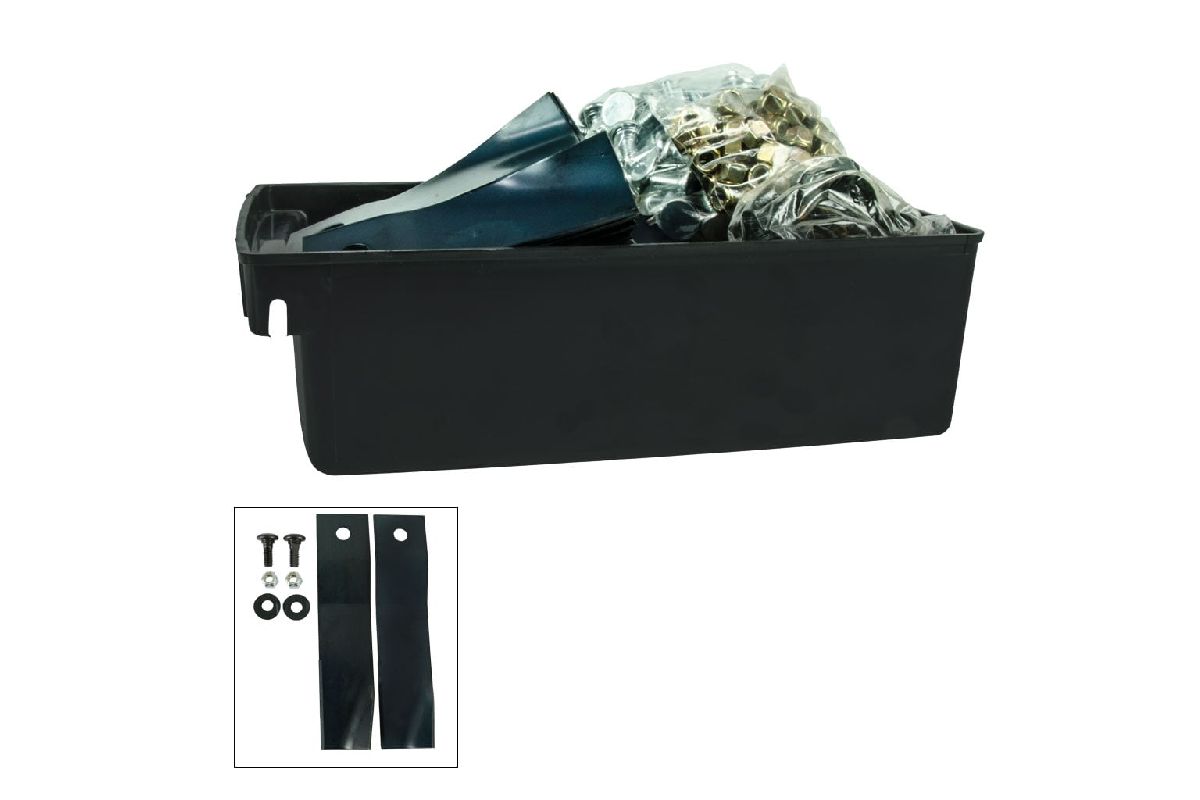

| Kit consists of: | BLS3817WC x 25 Pairs of blades, |
|---|
| BBN3722W x 25 Pairs of bolt set components, |
|---|
| BSS6844 x 1 Plastic stock box, |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Footnote: | All length measurements are from the centre of bolt hole to end of blade. |
|---|
| Brand: | Cox Non-Genuine, Craftsman Non-Genuine, Husqvarna Non-Genuine, Victa Non-Genuine, |
|---|
| Product Line: | Blade & bolt sets workshop pack, blade and bolt sets workshop pack, swing back |
|---|
| blades and bolt sets - workshop packs, workshop packs - blades & bolts, workshop |
|---|
| pack - blades and bolts, |
|---|
Cox 32" Blade & Bolt - Small Workshop Pack Of * 25 Sets *
