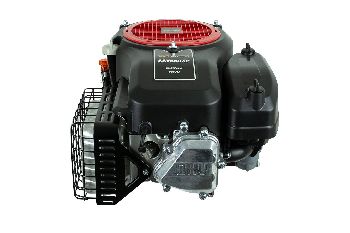

| Description: | SupaSwift SSV550XP, 15.5 hp, 11.5 kW, 547 cc Single Cylinder OHV Vertical Shaft |
|---|
| 4-Stroke Petrol Engine |
|---|
| Editorial: | The SupaSwift SSV550XP is a durable and reliable 11.5 kW single cylinder OHV |
|---|
| 4-stroke petrol engine suitable for a variety of outdoor power equipment including |
|---|
| ride-on lawn mowers. With premium features such as a forged crankshaft, metal cam |
|---|
| shaft, cast-iron cylinder liner, OHV design and an oil filter this engine is ready |
|---|
| to provide many years of trouble free service. |
|---|
| Warranty: | 3 Years domestic, 90 days commercial. For further details on our warranty terms and |
|---|
| conditions including all limitations and exclusions please refer to the warranty |
|---|
| section on our web site or contact our friendly sales team. |
|---|
| Features: | Cast-Iron cylinder sleeve. |
|---|
| Forged and carefully balanced crankshaft. |
|---|
| Metal camshaft. |
|---|
| OHV design. |
|---|
| Oil filter. |
|---|
| Proven reliability. |
|---|
| Conforms to Euro 5 Standards. |
|---|
| Suitable for ride-on mowers. |
|---|
| Engine: | SupaSwift SSV550XP. |
|---|
| Type: | Forced air-cooled, single cylinder OHV, vertical shaft, normally aspirated 4-stroke |
|---|
| petrol engine. |
|---|
| Displacement: | 547 cc. |
|---|
| Bore x Stroke: | 90mm x 86mm. |
|---|
| Cylinder: | Single cylinder with cast -iron cylinder sleeve. |
|---|
| Compression Ratio: | 8.5:1. |
|---|
| Net Power: | 15.5 hp [11.5 kW] @ 3600 rpm (Measured in accordance with SAE J1349). |
|---|
| Net Torque: | 33 nm @ 2600 rpm. (Measured in accordance with SAE J1349). |
|---|
| Horsepower (@3,600 rpm): | 15.5 hp (Measured in accordance with SAE J1349). |
|---|
| Engine (cc): | 547 cc. |
|---|
| Crankshaft: | Forged and balanced crankshaft. |
|---|
| Crankshaft Diameter: (inches) | 1". |
|---|
| Crankshaft Diameter: (mm) | 25.4 mm. |
|---|
| PTO Shaft Type: | A (1" or 25.4 mm, parallel keyway). |
|---|
| PTO Shaft Rotation: | Anti-clockwise (viewed from the PTO side). |
|---|
| Cooling: | Forced air-cooled. |
|---|
| Governor: | Centrifugal mass type. |
|---|
| Carburettor: | Butterfly type. |
|---|
| Choke: | Manual. |
|---|
| Starter: | Electric start. |
|---|
| Ignition: | Transistorised magneto ignition. |
|---|
| Charging System: | 15 amp. |
|---|
| Spark Plug: | NGK - BPR6ES. |
|---|
| Spark Plug Gap: | 0.6 - 0.8 mm. |
|---|
| Valve Clearance: | Inlet Valve: 0.10 - 0.15 mm. / Exhaust Valve: 0.10 - 0.15 mm. |
|---|
| Lubrication: | Splash and pressure lubrication system. |
|---|
| Oil Grade: | SAE 10W/30. |
|---|
| Oil Filter: | Yes. |
|---|
| Oil Capacity: | 1.8 litres. |
|---|
| Fuel: | Unleaded (minimum of 90 octane). |
|---|
| Fuel Capacity: | Please Note: This engine does not come with a fuel tank. |
|---|
| Fuel Filter: | No. |
|---|
| Air Filter: | Dual element paper and foam. |
|---|
| Exhaust/Muffler: | Yes, includes muffler and guard. |
|---|
| Dimensions L x W x H: | 470 mm x 405 mm x 400 mm. |
|---|
| Dry Weight: (lb) | 72.75 lb. |
|---|
| Dry Weight: (kg) | 33 kg. |
|---|
| International Standard: | Conforms to EU5. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | Specifications subject to change without notice. The power rating of this engine is |
|---|
| the net power output tested on a production engine and measured in accordance with |
|---|
| SAE J1349 at 3,600 rpm (Net Power) and at 2,600 rpm (Max. Net Torque). Please Note: |
|---|
| This engine does not come with a fuel tank. |
|---|
| Brand: | SupaSwift, |
|---|
| Product Line: | Engine, Four Stroke Engine, SupaSwift Engine, 4-Stroke Engine, |
|---|
