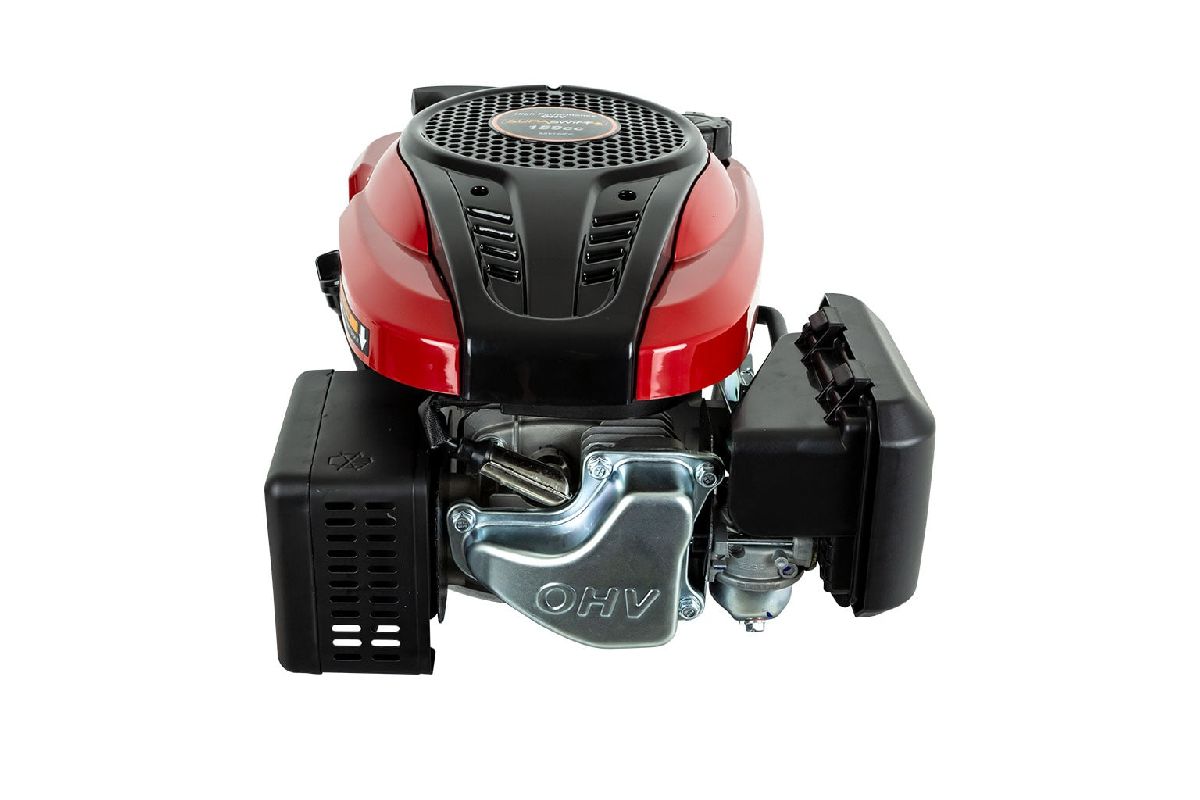

| Description: | SupaSwift SSV160FC, 2.7 kw, 159 cc Single Cylinder OHV Vertical Shaft Engine |
|---|
| Editorial: | The SupaSwift SSV160FC is a quality small engine packed with premium features such |
|---|
| as a forged crankshaft, metal cam shaft with nylon gear, cast iron cylinder liner, |
|---|
| OHV design and with proven reliabilty this engine is ready to be fitted to a |
|---|
| variety of out doorpower equipment includind walk-behind lawn mowers to provide |
|---|
| years of trouble free service. |
|---|
| Warranty: | 3 years domestic, 3 months commercial. For further details on our warranty terms |
|---|
| and conditions including all limitations and exclusions please refer to the |
|---|
| warranty section on our web site or contact our friendly sales team. |
|---|
| Features: | Cast-Iron cylinder liner. |
|---|
| Forged crankshaft. |
|---|
| Metal camshaft with nylon gear. |
|---|
| OHV design. |
|---|
| Auto choke. |
|---|
| Dual stage air filter. |
|---|
| Proven reliability. |
|---|
| Conforms to Euro 5. |
|---|
| Engine: | SupaSwift SSV160FC. |
|---|
| Type: | Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol |
|---|
| engine. |
|---|
| Displacement: | 159 cc. |
|---|
| Bore x Stroke: | 65 mm x 48 mm |
|---|
| Cylinder: | Single cylinder with cast -iron cylinder liner. |
|---|
| Compression Ratio: | 7.6:1 |
|---|
| Net Power: | 3.0 kW @ 3600 rpm. (Measured in accordance with SAE J1349) |
|---|
| Net Torque: | 8.3 Nm @ 2500 rpm. (Measured in accordance with SAE J1349) |
|---|
| Engine (cc): | 159 cc |
|---|
| Crankshaft: | Forged crankshaft |
|---|
| Crankshaft Diameter: (inches) | 7/8" |
|---|
| Crankshaft Diameter: (mm) | 22.22 mm |
|---|
| PTO Shaft Type: | 7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key. |
|---|
| PTO Shaft Rotation: | Anti-clockwise (from the PTO side) |
|---|
| Cooling: | Air cooled. |
|---|
| Governor: | Centrifugal mass type. |
|---|
| Carburettor: | Butterfly type. |
|---|
| Choke: | Auto choke. |
|---|
| Idle Speed: | 2200 ± 150 rpm / min. |
|---|
| Starter: | Recoil Start. |
|---|
| Ignition: | Transistorised Magneto Ignition. |
|---|
| Lubrication: | Splash. |
|---|
| Oil Capacity: | 550 ml (please use SAE10W/40 oil). |
|---|
| Fuel: | Unleaded |
|---|
| Fuel Capacity: | 1.0 Litre |
|---|
| Fuel Filter: | Yes, in-tank type fuel filter. |
|---|
| Air Filter: | Pleated paper cartridge type with a foam pre-filter. |
|---|
| Exhaust/Muffler: | Yes, comes with muffler and heat shield. |
|---|
| Dry Weight: (lb) | 26.01 lb. |
|---|
| Dry Weight: (kg) | 11.8 kg |
|---|
| International Standard: | Conforms to EU5 |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | Specifications subject to change without notice. The power rating of this engine is |
|---|
| the net power output tested on a production engine and measured in accordance with |
|---|
| SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque). |
|---|
| Brand: | SupaSwift, |
|---|
| Product Line: | Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine, |
|---|
Supaswift Engine Ssv160fc 159cc Vertical Shaft Lc1p65fc
