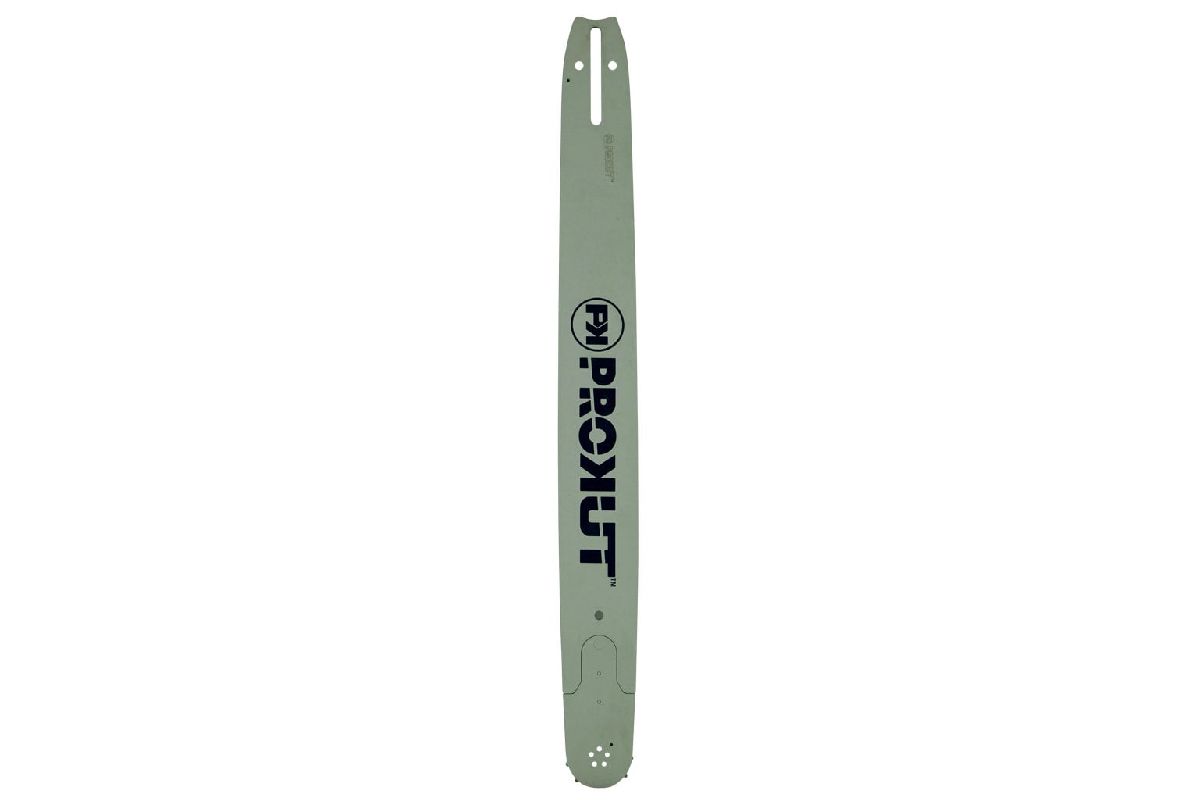

Prokut Sprocket Nose Guide Bar 22 #48 Cb

Brand: FORESTRY-G

SKU: GAFCB2248RS

$101.27 (Each)

Availability: Available

Description:	PROKUT 22" x 3/8" x .058" x 76 DL Or 77 DL, CB Mount, Solid Professional
	Replaceable Sprocket Nose Guide Bar
Replaces OEM:	OREGON® 228RNDD009
Replaces OEM:	Husqvarna 501 95 69-76,
	OREGON 228RNDD009,
	• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
	body
	• Super tough chrome-moly steel provides superior bar-body strength and tough
	rails with excellent resistance to wear and chipping
	• All PROKUT™ guide bars are reversible for longer life
Features:	Solid professional replaceable sprocket nose guide bar.
	Nose fastens with a single rivet, and is securely held by wide and strong
	overlapping ears.
	The long sprocket nose takes most of the abuse, and minimizes wear to the bars
	body.
	Super tough chrome-moly steel provides superior bar-body strength and tough rails
	with excellent resistance to wear and chipping.
	All PROKUT guide bars are reversible for longer life.
Length: (in):	22"
Length: (in):	22"
Length: (cm):	55 cm
Pitch:	3/8"
Bar Type:	Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type:	48S / Semi-Chisel or 48F / Full-Chisel
Bar Mount Type:	CB
Gauge:	.058"
Drive Link Count:	76 (most) or 77 (some, as detailed above)
Teeth:	11 Tooth sprocket nose
Recommended Saw Sizes:	50 cc to 100 cc (3.0 to 6.0 cu. in.)
	PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
	PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a
	76 drive link chain).
Fits:	Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
	PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
	PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a
	76 drive link chain).
	AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L
	66, L 70 and L 77 models. (These models use a 76 drive link chain).
Fits:	Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP
	LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385
	XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,
	465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP
	AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L
	66, L 70 and L 77 models. (These models use a 76 drive link chain).
Fits:	Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071,
	2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS
	2186, CS 2186 WH and CS 2188 models. (These models use a 76 drive link chain).
	Note: Please check your saw carefully prior to ordering, some of the above saw
	models were also released fitted with a .404" pitch chain.
Fits:	Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL. (These models
	use a 76 drive link chain). Note: Please check your saw carefully prior to
	ordering, some of these saw models were also released fitted with a .404" pitch
	chain.
Fits:	Partner 550, 1655, 2055, P-55, R-11, R-12, R-14, R-16, R-17, R-18, R-19, S-50, S-55
	and S-65 models. (These models use a 77 drive link chain).
Fits:	Poulan / Poulan Pro 415, 425, 445, 475 and 505. Note: Please check your saw
	carefully prior to ordering, some of these saw models were also released fitted
	with a .404" pitch chain. (These models use a 76 drive link chain).
Fits:	Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W models. (These models use a
	76 drive link chain).
Fits:	Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 models. (These
	models use a 76 drive link chain).
Standard Pack Quantity:	1
Please Note:	Use with our semi-chisel chain loop part number GAF48S076DL or our full-chisel
	chain loop part number GAF48F076DL (both for 76 drive link applications) or use
	with our semi-chisel chain loop part number GAF48S077DL or our full-chisel chain
	loop part number GAF48F077DL (both for 77 drive link applications). Replaces our
	part number OMK228RNDD009
	nose guide bar,
Standard Pack Quantity:	1
Please Note:	Use with our semi-chisel chain loop part number GAF48S076DL or our full-chisel
	chain loop part number GAF48F076DL (both for 76 drive link applications) or use
	with our semi-chisel chain loop part number GAF48S077DL or our full-chisel chain
	loop part number GAF48F077DL (both for 77 drive link applications). Replaces our
	part number OMK228RNDD009
Brand:	PROKUT, GA Forestry Accessories,
Product Line:	Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
	nose guide bar,
