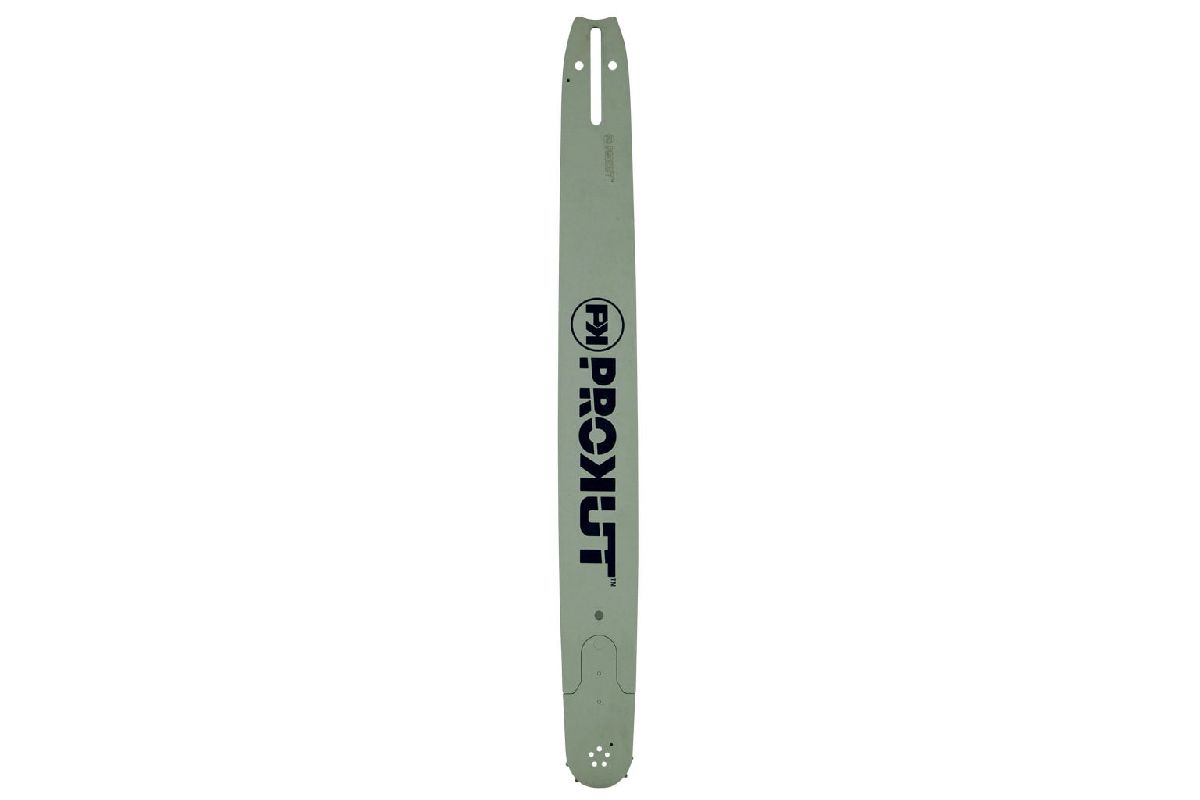

| Description: | PROKUT™ 20" x 3/8" x .050" x 70 DL, CH Mount, Solid Professional Replaceable |
|---|
| Sprocket Nose Guide Bar |
|---|
| Replaces OEM: | OREGON® 200RNDD196 |
|---|
| Replaces OEM: | OREGON® 200RNDD196 |
|---|
| • Nose fastens with a single rivet, and is securely held by wide and strong |
|---|
| overlapping ears |
|---|
| • The long sprocket nose takes most of the abuse, and minimizes wear to the bars |
|---|
| body |
|---|
| • Super tough chrome-moly steel provides superior bar-body strength and tough |
|---|
| rails with excellent resistance to wear and chipping |
|---|
| • All PROKUT™ guide bars are reversible for longer life |
|---|
| Features: | • Solid professional replaceable sprocket nose guide bar |
|---|
| • Nose fastens with a single rivet, and is securely held by wide and strong |
|---|
| overlapping ears |
|---|
| • The long sprocket nose takes most of the abuse, and minimizes wear to the bars |
|---|
| body |
|---|
| • Super tough chrome-moly steel provides superior bar-body strength and tough |
|---|
| rails with excellent resistance to wear and chipping |
|---|
| • All PROKUT™ guide bars are reversible for longer life |
|---|
| Length: (in): | 20" |
|---|
| Length: (in): | 20" |
|---|
| Length: (cm): | 50 cm |
|---|
| Pitch: | 3/8" |
|---|
| Bar Type: | Solid Professional Replaceable Sprocket Nose Guide Bar |
|---|
| Chain / Cutter Type: | 40S / Semi-Chisel or 40F / Full-Chisel |
|---|
| Bar Mount Type: | CH |
|---|
| Gauge: | .050" |
|---|
| Drive Link Count: | 70 |
|---|
| Teeth: | 11 Tooth sprocket nose |
|---|
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
|---|
| Fits: | Echo CS-900, CS-900EVL and CS-1001 models. |
|---|
| 750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO, |
|---|
| V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models. |
|---|
| Fits: | Homelite 35SL, 330, 350, 350HG, 350SL, 360, 400, 410, 450, 460, 540, 550, 650, 700, |
|---|
| 750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO, |
|---|
| V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models. |
|---|
| with a .404" pitch chain. |
|---|
| Fits: | John Deere CS71 and CS81. Note: The "CH" bar tail slot (motor mount slot) must be |
|---|
| filed .020" (.00508 mm) for correct fitment. |
|---|
| .020" (.00508 mm) for correct fitment. |
|---|
| Fits: | Jonsered 60, 61, 62, 66, 70, 75, 77, 80, 81, 90, 110, 111, 601, 621, 751, 801, 820, |
|---|
| 830, 910, 920, 930, 939, 941, 1020 and 2350 models. Note: Please check your saw |
|---|
| carefully prior to ordering, some of the above saw models were also released fitted |
|---|
| with a .404" pitch chain. |
|---|
| Fits: | Oleo-Mac 250, 250A, 251, 252, 254, 260, 261, 264, 355 and 460A SUPER models. |
|---|
| Fits: | Oleo-Mac 48, 70, 264F, 272, 280, 284, 350, 355, 461, 480A SUPER, 970F, 980, 980F, |
|---|
| AGRISTAR, SUPER 482 NOTE: The "CH" bar tail slot (motor mount slot) must be filed |
|---|
| .020" (.00508 mm) for correct fitment. |
|---|
| Fits: | Poulan / Poulan Pro 6900, 7700 and 8500 models. Note: Please check your saw |
|---|
| carefully prior to ordering, some of these saw models were also released fitted |
|---|
| with a .404" pitch chain. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel |
|---|
| chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196 |
|---|
| nose guide bar, |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel |
|---|
| chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196 |
|---|
| Brand: | PROKUT™, GA Forestry Accessories™ |
|---|
| Product Line: | Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket |
|---|
| nose guide bar, |
|---|
Prokut Sprocket Nose Guide Bar 20 #40 Ch
