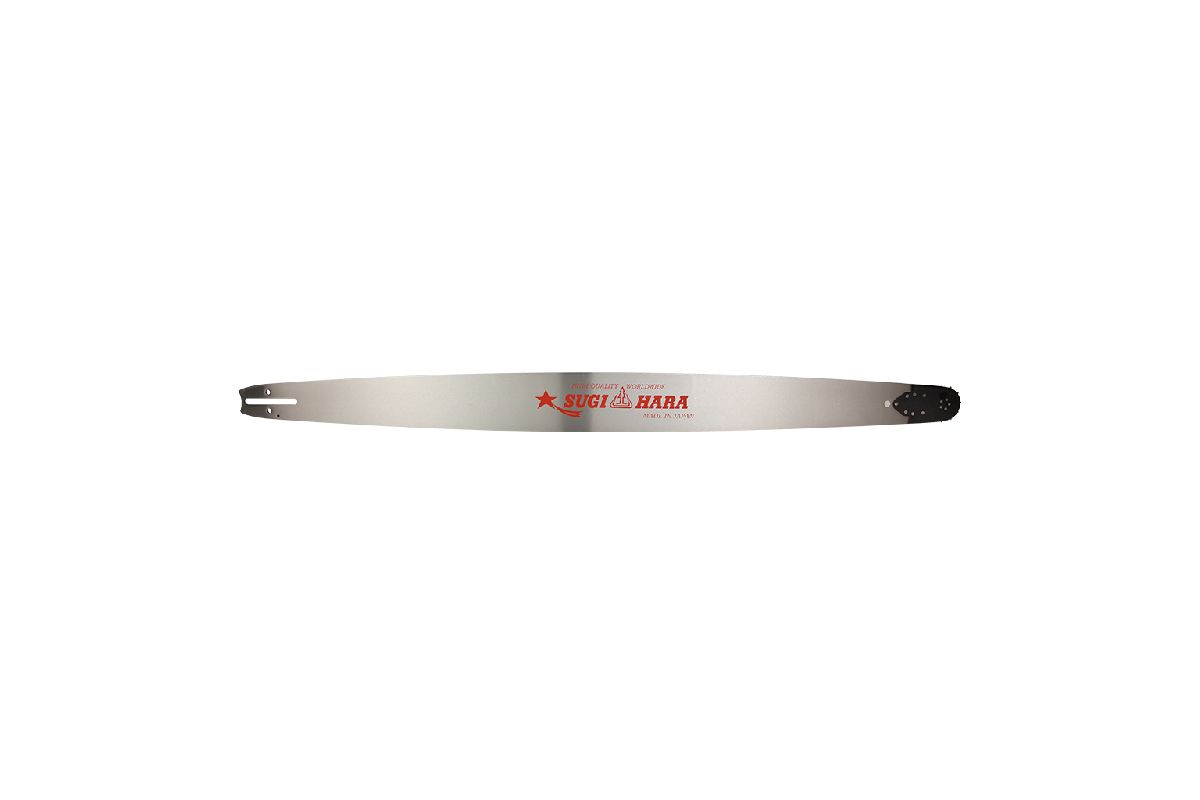

| Description: | PROKUT PLATINUM SUGIHARA 42" x 3/8" x .063" x *137 DL, CB Mount, Solid Professional |
|---|
| Replaceable Sprocket Nose Guide Bar - Made In Japan |
|---|
| Replaces OEM: | Oregon 423RNDD009 |
|---|
| Sugihara - Diatop VT2T-3Q105-A |
|---|
| Features: | Professional premium quality, solid, replaceable sprocket nose guide bar. |
|---|
| Manufactured from a single piece of steel, featuring superior durability and |
|---|
| stiffness characteristics. |
|---|
| High durability sprocket nose. |
|---|
| Polished lacquered finish. |
|---|
| Nose fastens with three rivets, and is securely held by wide and strong overlapping |
|---|
| ears. |
|---|
| The long sprocket nose takes most of the abuse, and minimizes wear to the bars |
|---|
| body. |
|---|
| Super tough steel, heat treated up to 4 times on different parts of the guide bar, |
|---|
| provides superior bar-body strength and tough rails with excellent resistance to |
|---|
| wear and chipping. |
|---|
| PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale. |
|---|
| Made in Japan. |
|---|
| All PROKUT guide bars are reversible for longer life. |
|---|
| Length: (in): | 42" |
|---|
| Length: (cm): | 107 cm |
|---|
| Pitch: | 3/8" |
|---|
| Bar Type: | PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar |
|---|
| Chain / Cutter Type: | 43S / Semi-Chisel or 43F / Full-Chisel |
|---|
| Bar Mount Type: | CB |
|---|
| Gauge: | .063" |
|---|
| Drive Link Count: | *137 (*please refer to notes after each fitment application) |
|---|
| Teeth: | 11 Tooth sprocket nose |
|---|
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
|---|
| Fits: | *Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371, |
|---|
| 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP, |
|---|
| 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG, |
|---|
| 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100, |
|---|
| 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. |
|---|
| Fits: | *Jonsered 670 WEST COAST, 2083II. model chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. Note: Please check your saw carefully prior to ordering, some of the |
|---|
| above saw models were also released fitted with a .404" pitch chain. |
|---|
| Fits: | *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model |
|---|
| chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. Note: Please check your saw carefully prior to ordering, some of the |
|---|
| above saw models were also released fitted with a .404" pitch chain. |
|---|
| Fits: | *Poulan / Poulan Pro 415, 425, 445, 475, 505 model chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. Note: Please check your saw carefully prior to ordering, some of |
|---|
| these saw models were also released fitted with a .404" pitch chain. |
|---|
| Fits: | *Shindaiwa 680, 695, 757, 757C and 757W model chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. |
|---|
| Fits: | *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws. |
|---|
| Product Line Notes: | *Please note these models were fitted with 135 drive link chains from new. This |
|---|
| guide bar uses an 137 drive link chain and so the existing chain will require |
|---|
| lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these |
|---|
| applications. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | Replaces our part number OMK423RNDD009 (which was 135 DL) |
|---|
| Please Note: | Use with our semi-chisel chain loop part number GAF43S137DL or our full-chisel |
|---|
| chain loop part number GAF43F137DL. For a standard PROKUT solid professional |
|---|
| replaceable sprocket nose guide bar option which uses a 135 drive link chain use |
|---|
| our part number GAFCB4243RS. |
|---|
| Brand: | PROKUT PLATINUM SUGIHARA, GA Forestry Accessories |
|---|
| Product Line: | Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket |
|---|
| nose guide bar, |
|---|
