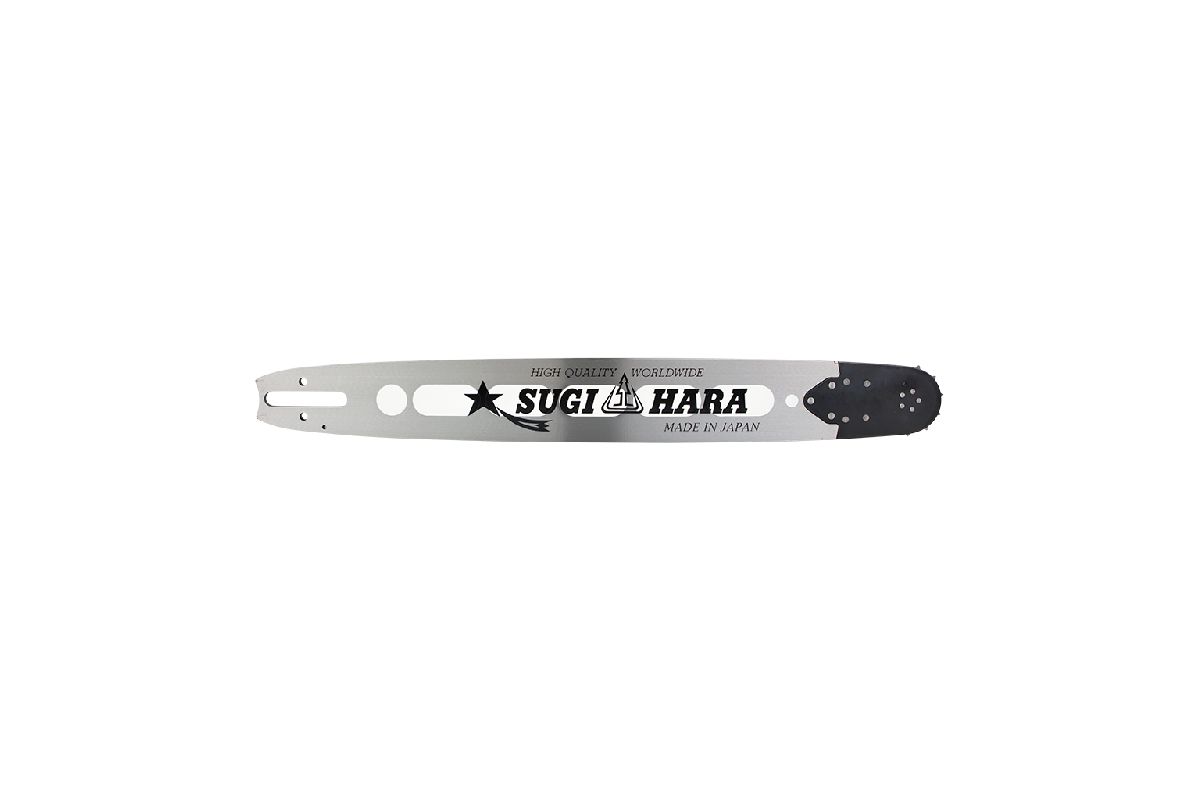

| Description: | PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 20" x 3/8" x .063" x 72 DL, CD |
|---|
| Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan |
|---|
| Editorial: | The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are |
|---|
| manufactured In Japan from a single piece of steel. Manufactured the same way as |
|---|
| the Sugihara Red Label Pro Solid bars but with sections removed and filled with a |
|---|
| rigid, weight reducing resin. One of the best guide bars in the world today |
|---|
| Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular |
|---|
| version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars |
|---|
| are sought after for their high performance and light-weight. They are easily |
|---|
| recognised by the white resin sections and black label. The most striking looking |
|---|
| bar on the market. |
|---|
| Replaces OEM: | Oregon 203RNDD025 |
|---|
| Sugihara - Diatop ST2U-3Q50-A |
|---|
| Features: | PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily |
|---|
| recognised by the white resin sections and black label. |
|---|
| Manufactured the same way as the Sugihara Red Label Pro Solid bars but with |
|---|
| sections removed and filled with a rigid, weight reducing white resin. |
|---|
| This guide bar weighs just 1070g |
|---|
| Professional premium quality, reduced weight replaceable sprocket nose guide bar. |
|---|
| High durability sprocket nose. |
|---|
| Polished lacquered finish. |
|---|
| Nose fastens with three rivets, and is securely held by wide and strong overlapping |
|---|
| ears. |
|---|
| The long sprocket nose takes most of the abuse, and minimizes wear to the bars |
|---|
| body. |
|---|
| Super tough steel, heat treated up to 4 times on different parts of the guide bar, |
|---|
| provides superior bar-body strength and tough rails with excellent resistance to |
|---|
| wear and chipping. |
|---|
| PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale. |
|---|
| Made in Japan. |
|---|
| All PROKUT guide bars are reversible for longer life. |
|---|
| Length: (in): | 20" |
|---|
| Length: (cm): | 50 cm |
|---|
| Pitch: | 3/8" |
|---|
| Bar Type: | PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar |
|---|
| Chain / Cutter Type: | 43S / Semi-Chisel or 43F / Full-Chisel |
|---|
| Bar Mount Type: | CD |
|---|
| Gauge: | .063" |
|---|
| Drive Link Count: | 72 |
|---|
| Teeth: | 11 Tooth sprocket nose |
|---|
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
|---|
| Fits: | STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, |
|---|
| 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, |
|---|
| E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS |
|---|
| 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440, |
|---|
| MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, |
|---|
| MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models. |
|---|
| Product Line Notes: | Please check your saw carefully prior to ordering, some of the above saw models |
|---|
| were also released fitted with a .404" pitch chain. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | Replaces our part number OMK203RNDD025 |
|---|
| Please Note: | Use with our semi-chisel chain loop part number GAF43S072DL or our full-chisel |
|---|
| chain loop part number GAF43F072DL. For a PROKUT PLATINUM SUGIHARA solid |
|---|
| professional replaceable sprocket nose guide bar option use our part number |
|---|
| GAFCD2043RSP. For a standard PROKUT solid professional replaceable sprocket nose |
|---|
| guide bar option use our part number GAFCD2043RS. For a semi-professional laminated |
|---|
| multi-rivet sprocket nose guide bar option use our part number GAFCD2043PL. For a |
|---|
| bar and chain combo option containing a semi-professional laminated multi-rivet |
|---|
| sprocket nose guide bar use our part number GAF110784. |
|---|
| Brand: | PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories, |
|---|
| Product Line: | Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar, |
|---|
| sprocket nose guide bar, |
|---|
