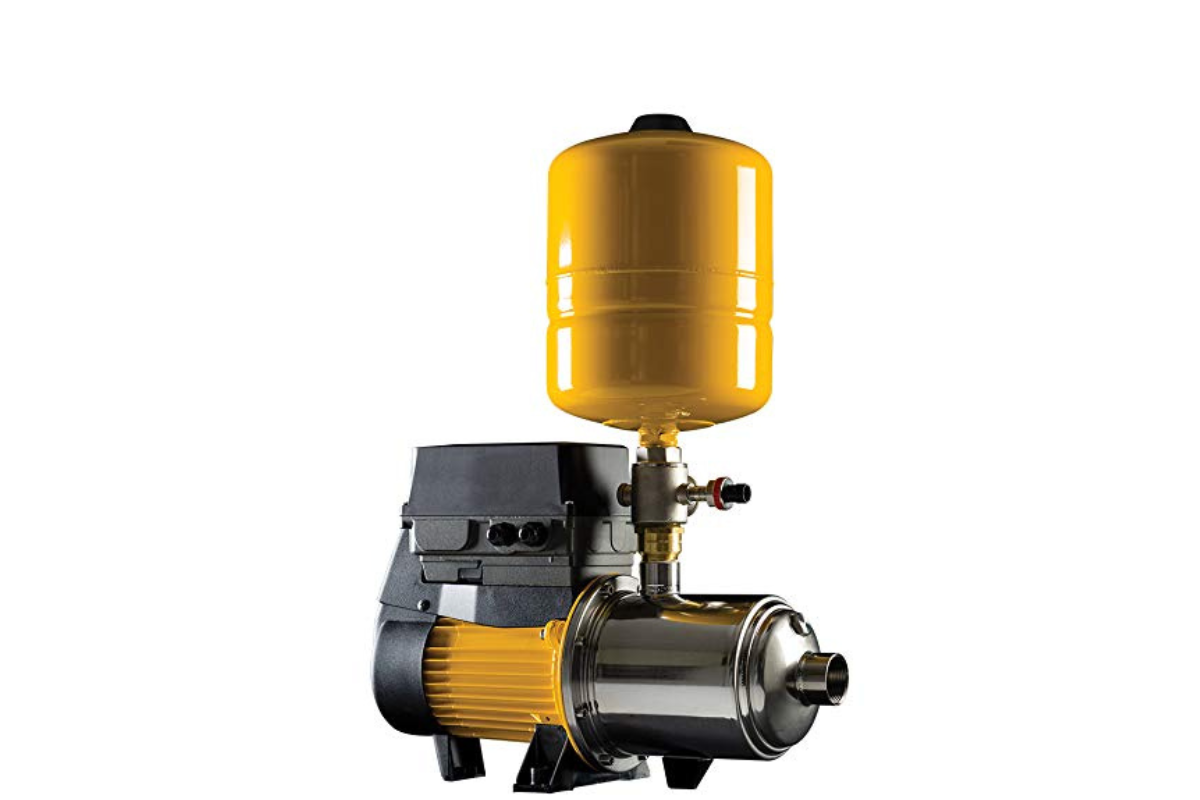

DynaDrive Constant Pressure System DD60-10

DynaDrive Constant Pressure System DD60-10

Brand: Davey

SKU: DD60-10

$2,327.27

Availability: Available

Make an Enquiry

Pump	Horizontal multistage centrifugal pump with fully stainless steel hydraulics for lasting durability and performance.
Impellers	High-efficiency impellers mounted directly on extended motor shaft for maximum performance, low noise, and long service life
Purge valve	Air purging valve for easier priming and reduced susceptibility to air leaks
Seal	8-point o-ring sealed pump casing for superior sealing and longer service life
Temperature rating	Suitable for water temperatures up to 80°C
Motor	Davey-built TEFC motor with sealed, grease-for-life bearings and oversized drive end bearing
Controller	Variable speed drive (VSD) controller with adjustable pressure settings and fault warning indicators
Pressure	Constant pressure maintained at high flow rates — smooth, quiet operation
Daisy-chain compatible	Up to 2 pumps in parallel for higher-demand applications

Voltage	220–240V
Frequency	50–60 Hz
Input power (P1)	1.1 kW / 1.3 kW
Output power (P2)	0.8 kW / 0.9 kW
0.8 kW / 0.9 kW	7.4 A / 8.6 A
Max motor speed	2,900 rpm
Insulation class	F
IP rating	IP55
Inlet	1¼" BSP female
Discharge outlet	1" BSP male
Pressure tank outlet	1" BSP female
Stages (impellers)	6 / 5
Maximum head	68 m / 59 m
Default operating pressure	400 kPa

Flow rate @ 300 kPa	60 lpm
Flow rate @ 400 kPa	48 lpm
Flow rate @ 500 kPa	32 lpm
