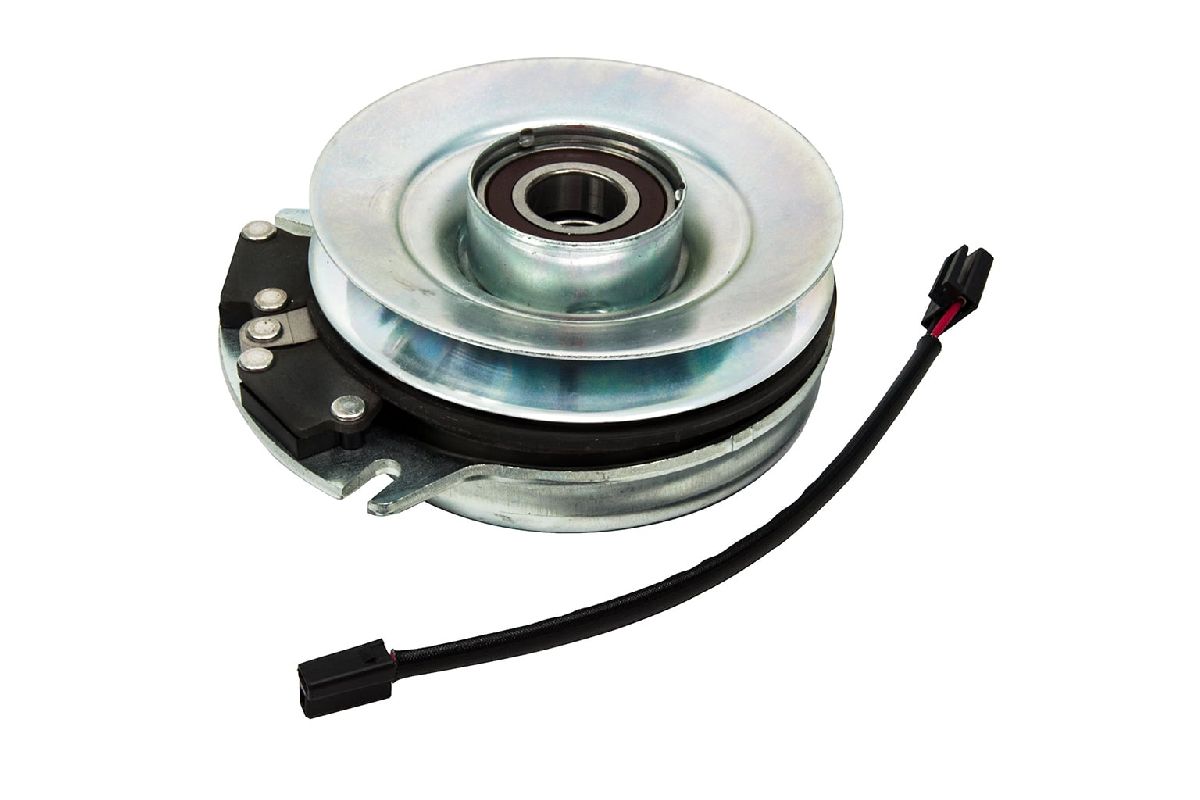

| Description: | Electric PTO Clutch Assembly |
|---|
| Replaces OEM: | Bad Boy: 070-5035-00 |
|---|
| BigDog: 601311 |
|---|
| Exmark: 103-0665, 1-631732, 1-641300 |
|---|
| Grasshopper: 388740 |
|---|
| Hustler: 787366, 601311 |
|---|
| Toro 103-0501, 103-0665 |
|---|
| Warner 5218-65, 5218-213 |
|---|
| Inside Diameter: (inches) | 1 1/8 |
|---|
| Inside Diameter: (mm) | 28 |
|---|
| Height: (inches) | 3 5/8 |
|---|
| Height: (mm) | 92.07 |
|---|
| Pulley Diameter : (inches) | 6.25 |
|---|
| Pulley Diameter : (mm) | 158.75 |
|---|
| Fits: | Selected BigDog ZTR models including X-Series models 931543, 931584. |
|---|
| Fits: | Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814. |
|---|
| Fits: | Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002. |
|---|
| Features: | Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
|---|
| Over the counter sales of clutches as spare parts should be discouraged. |
|---|
| WHY? - The main causes of failures to electric clutches are due to faults with the |
|---|
| battery and/or charging circuits not providing the correct current to operate the |
|---|
| clutch adequately leading to premature failure. Electric PTO clutches are a |
|---|
| specialist component that should only be fitted by a servicing dealer with the |
|---|
| correct equipment to test both the charging circuits and battery condition. It is |
|---|
| therefore the responsibility of the servicing dealer to test these items prior to |
|---|
| installing a new clutch. Failure to do so will void warranty. Warranty covers |
|---|
| normal use and does not cover damage or defect which results from alteration, |
|---|
| accident, neglect, or improper clutch selection, installation, operation, or |
|---|
| maintenance. Warranty covers faulty manufacture and/or workmanship. |
|---|
| GA Spares stocks electric clutches manufactured by an OEM supplier. |
|---|
| Brand: | Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner, |
|---|
| Product Line: | Electric Clutch, Clutch - Electric, |
|---|
Electric Pto Clutch Assembly 1-1/8" Id X 6.25" Pulley
